Flood DefendTM
Reusable L Shaped Flood Barrier for Flood Control
NewFlag is a leading manufacturer and supplier of high-performance flood protection systems. With extensive experience in designing modular flood barriers, we provide professional solutions tailored for commercial and industrial clients.
Our L-Shaped Flood Barrier offers robust protection against flooding while remaining easy to install, remove, and store. We support bulk orders and OEM custom services, ensuring every barrier meets the specific requirements of our business customers.
Key Features of L Shaped Flood Barrier
- Stable L-Shaped Structure: Distributes water pressure downward, keeping the barrier secure without permanent ground fixing.
- Effective Ground Sealing: Integrated sealing elements enhance ground contact, reducing water seepage at entrances and access points.
- Strong Panel Connections: Reinforced joints and locking systems ensure rigidity and reliable performance.
- Modular and Flexible Layout: Panels can be combined to fit different openings, adapting to various site conditions.

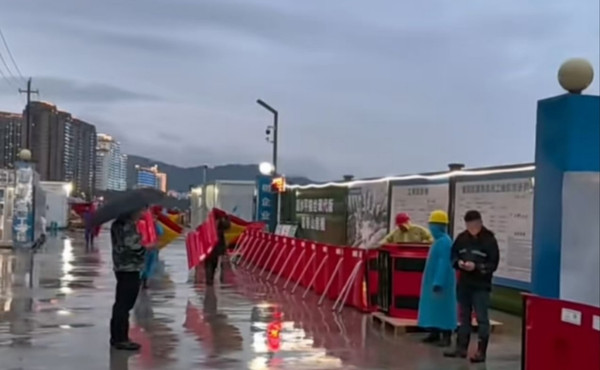

- Quick Deployment and Removal: Designed for fast installation without complex tools, ideal for temporary or emergency use.
- Compact Storage: Panels stack efficiently, simplifying transport and saving space.

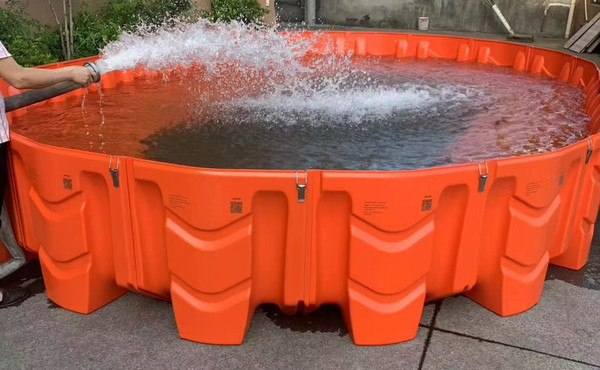

- Durable and Reusable: Made from high-strength, corrosion-resistant materials for long-term flood protection.
Explore NewFlag's L Shaped Flood Barrier

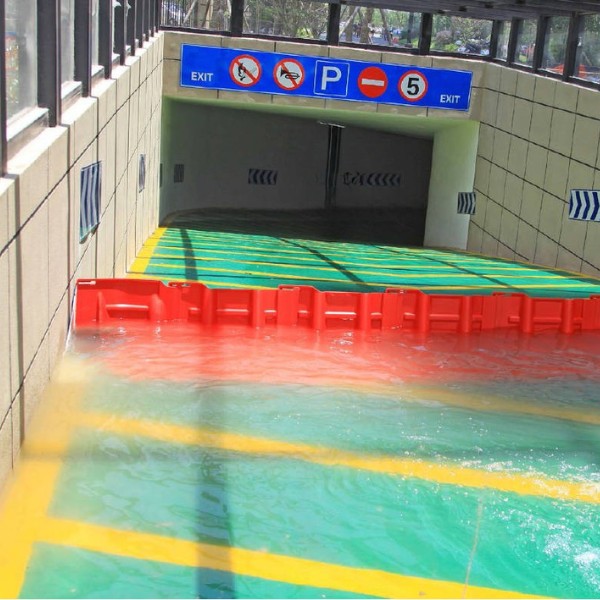

The L‑Shaped Flood Barrier from NEWFLAG combines engineered design with high‑performance components to deliver superior flood protection. Ideal for both temporary and semi‑permanent installations, these panels provide effective defense against rising water levels.
Equipped with precision‑designed P‑shape EPDM seals and double sealing systems, along with reinforced interfaces and stainless steel locking clamps, the panels offer enhanced waterproof performance and structural stability during flood events.
We support bulk orders and OEM custom solutions, enabling clients to specify dimensions, finishes, and configurations according to project‑specific needs. Easy handling and rapid assembly make these barriers suitable for emergency deployment and long‑term flood protection planning.
Benefits of L Shaped Flood Barrier
Waterproof Greatly Improved
The addition of the front P-shape EPDM seal increases the waterproof performance by 50% and significantly reduces the water leakage which reaches the standard of Japan’s Class 1 waterproof equipment.
Structure Significantly Strengthened
The 1st generation of board joints were at 90° angles and were easily damaged due to stress concentration. We have changed the shape of the joint surface of the board to a folded angle, thus dispersing the stress and significantly improving the structural strength.

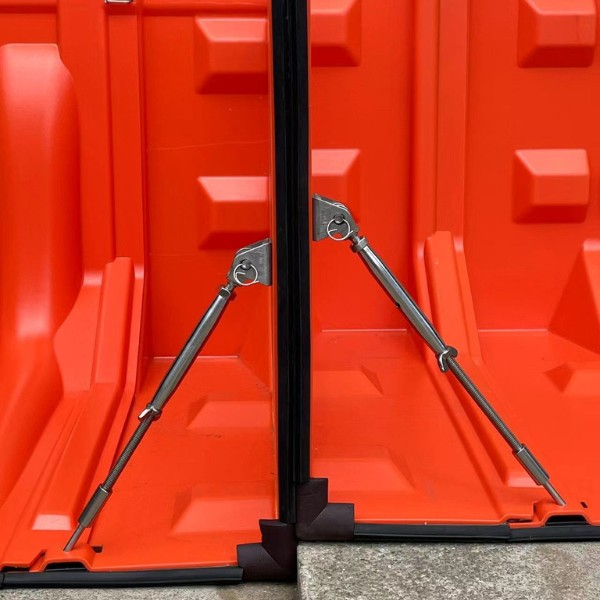

New Stainless Steel Locking Clamp Design
A stainless steel locking clamp is new provided on the board, to lock each connecting board. The 1st generation was buckled together directly by the slotted channel in the board, due to the low strength of the plastic material offering un-sufficient locking strength, in extreme cases these buckles may slip out leads to a risk of failure.
The new stainless steel locking design makes the connection more stable, and doubled the overall rigidity of the full system.
Contacting Interface Reinforced
Reinforcing bracket with the seals is designed at the contacting interface to prevent damage and extend the life.

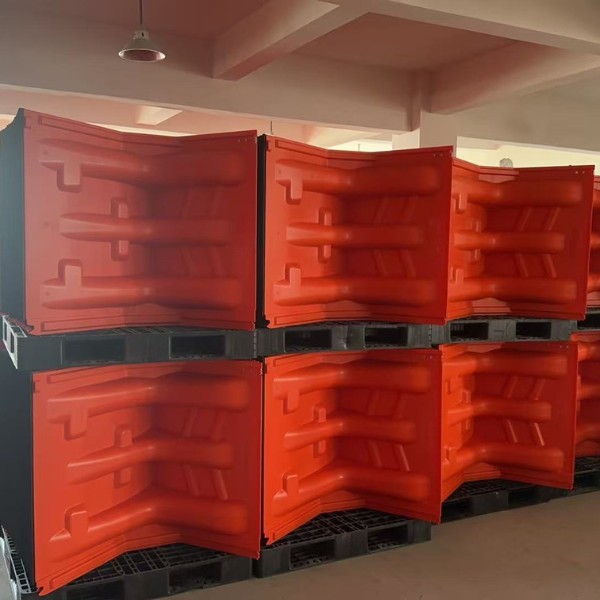

Storage Space Reduced
The boards can be stored in two or three pieces connected and placed on its side, to reduce the storage area. And the assembled form can reduce the transporting and deploy time for emergency.
L Shape Flood Barrier How It Works Video

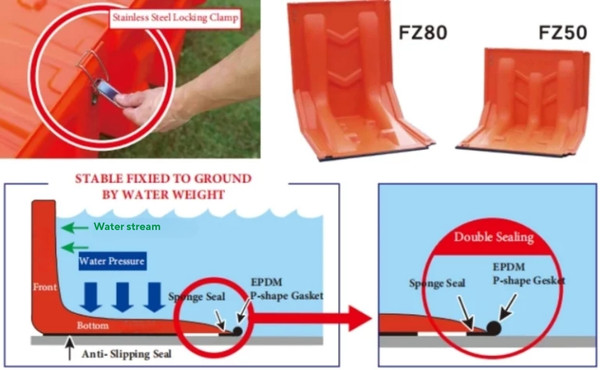

L-Shaped Flood Barrier: How It Works
The L-Shaped Flood Barrier is designed to provide reliable flood protection by keeping water out. Its waterproof performance comes from the combination of a well-engineered structure, advanced sealing systems, and secure panel connections. The L-shaped design places the vertical section against incoming water while the horizontal base sits firmly on the ground, converting horizontal water pressure into downward and vertical forces to stabilize the barrier and reduce seepage.
The barrier also features a double sealing system: a sponge gasket compresses between panels to fill gaps, while a P-shape EPDM gasket reinforces the joints. Together, they form a secondary layer of protection, minimizing leakage during the early stages of flooding. Panels are securely connected with stainless steel locking clamps, ensuring joints remain tight and aligned.
By combining its structural design, double sealing system, and strong connections, the L-Shaped Flood Barrier forms a continuous, watertight defense, providing reliable protection for urban, commercial, and emergency flood scenarios.
Durable Materials Behind L-Shaped Flood Barriers
| Component | Material | Function / Benefit |
|---|---|---|
| Main Panels | High-strength, corrosion-resistant steel or composite | Withstands water pressure, ensures long-term durability |
| Horizontal Base | Reinforced steel/composite | Creates a tight seal with the ground, prevents seepage |
| Joint Seals | EPDM P-shaped seals | Enhances waterproofing at panel connections |
| Connection Clamps | Stainless steel | Provides rigidity and stability, prevents joint failure |
| Surface Coating | Anti-corrosion coating | Protects against rust and environmental wear |
How to Install L-Shaped Flood Barriers
1. Confirm the Site
Ensure the installation site is suitable for deploying the barrier, with a stable and accessible area.
2. Prepare the Ground
Clean and level the ground where the barrier will be placed to provide a firm, even base.
3. Position the Barrier
Stand behind the flood board, ensuring the front faces the water.
4. Set the Initial Panel
Place the first left board (FG or FGL) at the wet side as the starting point.
5. Connect Subsequent Panels
Attach the following panels to the right end sequentially, making sure they are properly aligned.
6. Secure the Right Side
Position the right board (FG or FGR) to tightly connect with the wall on the right side. Align pin B with socket A, connect them, and lock using the stainless steel locking clamp. FS boards can be added if needed for specific site conditions.
7. Final Check
After installation, verify that all panels are securely connected, locking clamps are fastened, and the barrier is stable and ready for operation.
2nd Gen. L-Shape Free Standing Flood Board, Patented invovation in both China and Japan with 5 major upgrading on the 1st Gen. free standing flood board
Waterproof Greatly Improved
The addition of the front P-shape EPDM seal increases the waterproof performance by 50% and significantly reduces the water leakage which reaches the standard of Japan’s Class 1 waterproof equipment.
Structure Significantly Strengthened
The 1st generation of board joints were at 90° angles and were easily damaged due to stress concentration. We have changed the shape of the joint surface of the board to a folded angle, thus dispersing the stress and significantly improving the structural strength.
New Stainless Steel Locking Clamp Design
A stainless steel locking clamp is new provided on the board, to lock each connecting board. The 1st generation was buckled together directly by the slotted channel in the board, due to the low strength of the plastic material offering un-sufficient locking strength, in extreme cases these buckles may slip out leads to a risk of failure.
The new stainless steel locking design makes the connection more stable, and doubled the overall rigidity of the full system.
Contacting Interface Reinforced
Reinforcing bracket with the seals is designed at the contacting interface to prevent damage and extend the life.
Storage Space Reduced
The boards can be stored in two or three pieces connected and placed on its side, to reduce the storage area. And the assembled form can reduce the transporting and deploy time for emergency.
Free Standing Temparary Flood Barrier Deployment
1、Confirm the site for deployment
2、Clean the gound of the site
3、Stand behind the flood board to place the front of the board facing the water
4、Set the first left board(FG、FGL) as initial at the wet side.
5、Connect the following to the right end.
6、Apply the right board(FG、FGR) to tightly connect the wall at right side.

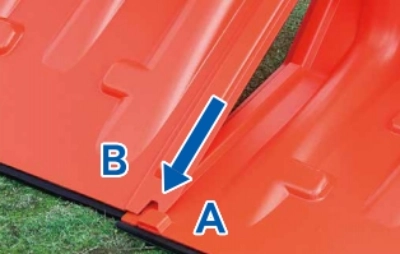

Align the pin at B to the socket at A.
Connect A and B, then lock with the stainless steel locking clamp.
FS board may be brought in for some cases.
Double Sealing
Sponge gasket for great sealing performnance after compression.
Working together with the P-shape EPDM gasket, double sealing are achieved to significantly reduce the leakage at the early stage of flood.
NEWFLAG Company Info
Newflag Technology Co., Ltd. is a young but professional expert in the flood defense industry committing to reliable flood protection solutions to fight against the global flood risk for both commercial and water conservancy purposes.
Our products include Aluminum Demountable Flood Barrier, Landscape Glass Wall, L-Shape Free Standing Flood Board FLOODGUARD, Hydrodynamic Automatic Flip Up Flood Barrier, etc. Adhering to the production concept of “safe, reliable, and professional” and the commitment to “high quality and efficient” in all related services, the company strives to become a pioneer in the field of flood protection systems.
Our L-Shape Free Standing Flood Board FLOODGUARD is including F50 series for a flood protection height H50CM and F80 series for a flood protection height H80CM, and F100 series for H100CM protectionis under development coming soon.
PURPOSE
In recent years, world-wide climate changes bring morfe and more heavy rains and typhoons lead to severe flood to our cities especially in low-lying areas near ocean, which has resulted in large amounts of
property damage.

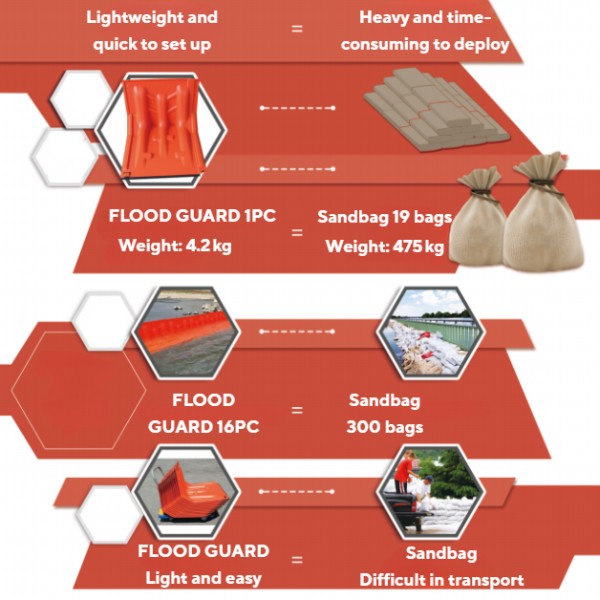

At this stage, the traditional sandbags solution has many shortcomings, such as long preparation time, inconvenient transportation, and carrying difficulties.
Our company’s newly developed simple type flood control water barrier, has a small storage footprint, easy and quick installation, good water blocking effect and many other advantages, is the first choice for
future urban flood control.
F50 SERIES
F80 SERIES
