Flood DefendTM
Reusable L Shaped Flood Barrier for Flood Control
NewFlag is a leading manufacturer and supplier of high-performance flood protection systems. With years of experience in modular flood barrier design, we offer reliable solutions for every situation.
Our L-Shaped Flood Barrier provides robust protection against flooding while remaining easy to install, remove, and store. Bulk orders and custom options are available to meet your specific needs.
Key Features of L Shaped Flood Barrier
- Modular L-shaped panel design for flexible assembly and extension
- High-strength aluminum alloy frame for durable outdoor performance
- Tool-free interlocking system for fast installation and removal
Explore NewFlag's L Shaped Flood Barrier
The L‑Shaped Flood Barrier from NEWFLAG combines engineered design with high‑performance components to deliver superior flood protection. Ideal for both temporary and semi‑permanent installations, these panels provide effective defense against rising water levels.
Equipped with precision‑designed P‑shape EPDM seals and double sealing systems, along with reinforced interfaces and stainless steel locking clamps, the panels offer enhanced waterproof performance and structural stability during flood events.
Benefits of Portable L-Shaped Flood Barriers
Enhanced Waterproofing
The front P-shaped EPDM seal with a sponge gasket ensures double sealing, boosting waterproof performance by 50% and reducing early water leakage to meet Japan’s Class 1 standard.

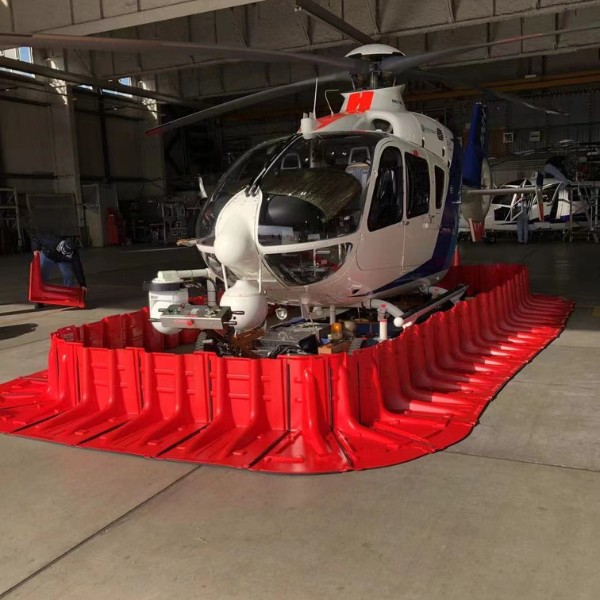

Minimal anchoring required
Unlike straight vertical barriers, L-shaped panels often stay in place without stakes or foundations, perfect for quick deployment on roads, pavements, or doorways.
Self-stabilizing design
The horizontal L-base uses incoming water weight to increase stability, so higher water levels make the barrier more secure.

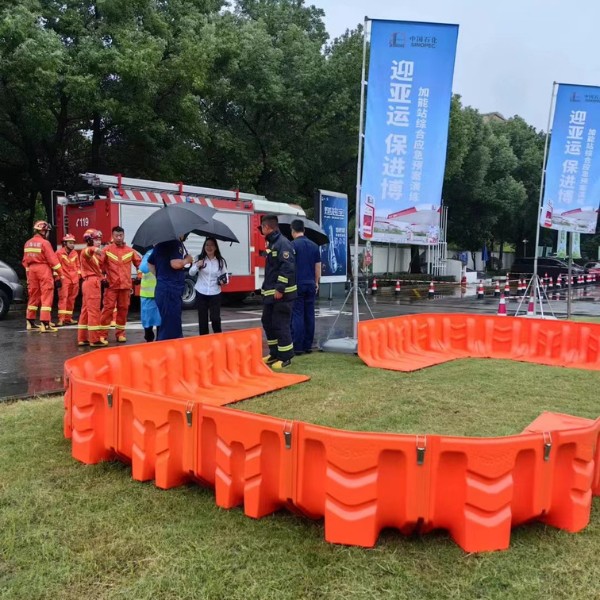

Flexibility and adaptability
Suitable for various entrances such as doors, garages, storefronts, and industrial access points. Different sizes and configurations can accommodate changing flood risks and site requirements.

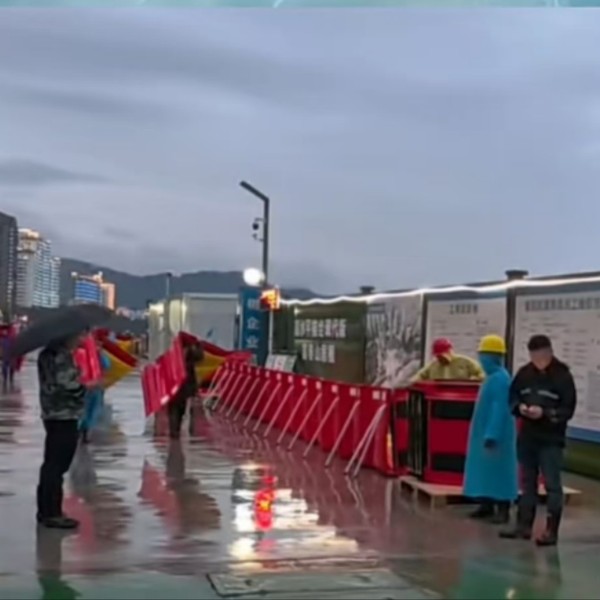

Rapid deployment, quick removal
Designed for rapid deployment during emergencies and easy removal afterward; lightweight modular panels make handling simple.
Reusable and cost-effective
Durable and designed for repeated use, reducing replacement costs and waste while offering a more environmentally friendly alternative to disposable flood control methods.
L Shape Flood Barrier How It Works Video
How Lightweight L-Shaped Flood Barriers Work to Keep Water Out
Lightweight L-Shaped Flood Barriers prevent flooding by creating a physical barrier that blocks the flow of water. Their L-shaped design allows one side to rest against the ground while the other side fits snugly against walls or corners, forming a tight seal that reduces water seepage.
The barrier’s lightweight yet durable material provides stability, allowing it to resist the pressure of rising water without collapsing. Water pressure is distributed along the L-shape, which enhances the barrier’s strength and prevents water from bypassing it.
For extended protection, multiple barriers can be connected side by side, forming a continuous flood defense line. This modular design adapts to different water levels and spaces, ensuring that water is effectively redirected or held back.
By combining a secure seal, stable structure, and modular connectivity, Lightweight L-Shaped Flood Barriers work efficiently to reduce the risk of flooding in residential, commercial, and public areas.
Durable Materials Behind L-Shaped Flood Barriers
| Component | Material | Function / Benefit |
|---|---|---|
| Main Panels | High-strength, corrosion-resistant steel or composite | Withstands water pressure, ensures long-term durability |
| Horizontal Base | Reinforced steel/composite | Creates a tight seal with the ground, prevents seepage |

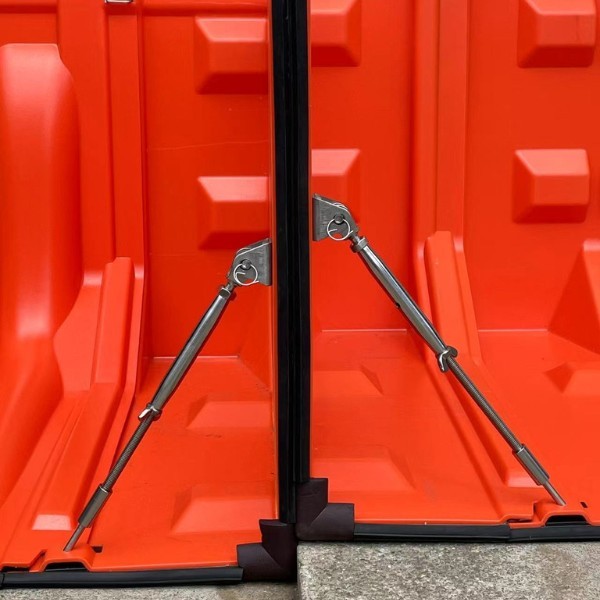

| Joint Seals | EPDM P-shaped seals | Enhances waterproofing at panel connections |
| Connection Clamps | Stainless steel | Provides rigidity and stability, prevents joint failure |
| Surface Coating | Anti-corrosion coating | Protects against rust and environmental wear |
Applications of L Shaped Flood Barrier Panels
- Building entrances and doorways：Prevents floodwater from entering residential and commercial properties.
- Basements and garages：Protects low-lying spaces that are highly vulnerable to water ingress.
- Warehouses and industrial facilities：Safeguards equipment, inventory, and operational areas from flooding.
- Loading docks and service entrances：Blocks water intrusion in logistics and transportation zones.
- Utility and electrical rooms： Helps protect critical systems and infrastructure during flood events.
- Urban and coastal flood control areas：Used for temporary or emergency flood protection in high-risk zones.
2nd Generation FLOODGUARD — Patented in China and Japan
FLOODGUARD’s 2nd generation introduces 5 engineering upgrades over the 1st generation. Here is a direct comparison:
| Upgrade Item | 1st Generation | 2nd Generation |
| Sealing | Single seal, basic waterproofing | P-shape EPDM + sponge gasket +50% waterproof, Japan Class 1 |
| Joint Geometry | 90° right angle stress concentration, prone to damage | Folded-angle joint stress dispersed, structure significantly strengthened |
| Locking Mechanism | Plastic slotted buckles insufficient strength, risk of slipping | Stainless steel locking clamps rigidity doubled |
| Contact Interface | Unreinforced, limited lifespan | Reinforcing bracket + integrated seals longer service life |
| Storage Form | Panels stored individually, large footprint | Pre-assembled 2-3 piece units stored sideways smaller footprint, faster emergency deployment |
Installation Process of Modular L-Shaped Flood Barriers
Confirm the Site
Ensure the installation site is suitable for deploying the barrier, with a stable and accessible area.
Prepare the Ground
Clean and level the ground where the barrier will be placed to provide a firm, even base.
Position the Barrier
Stand behind the flood board, ensuring the front faces the water.

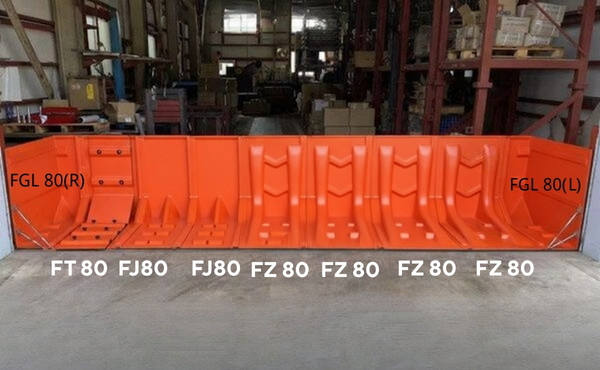

Set the Initial Panel
Place the first left board (FG or FGL) at the wet side as the starting point.
Connect Subsequent Panels
Attach the following panels to the right end sequentially, making sure they are properly aligned.
Secure the Right Side
Position the right board (FG or FGR) to tightly connect with the wall on the right side. Align pin B with socket A, connect them, and lock using the stainless steel locking clamp. FS boards can be added if needed for specific site conditions.
Final Check
After installation, verify that all panels are securely connected, locking clamps are fastened, and the barrier is stable and ready for operation.
L-Shaped Flood Barriers VS Traditional Methods
L-Shaped Flood Barriers outperform traditional methods like sandbags or wooden boards. They deploy quickly, saving valuable time during sudden floods, while sandbags require hours to fill and arrange. Their durable materials and L-shaped design create a tight seal, effectively keeping water out.
In contrast, traditional methods can shift, leak, or deteriorate over time. L-Shaped Flood Barriers are reusable and low-maintenance, offering a reliable, long-term solution compared to the labor-intensive, temporary nature of sandbags and boards.
How to Choose the Right L Shaped Flood Barrier
Flood Risk Level
Understand the maximum expected flood height in your area. Choose a barrier that is slightly higher than the highest possible water level for safe protection.
Installation Surface
Make sure the ground is flat and solid, such as concrete or asphalt. Uneven surfaces may reduce sealing effectiveness.
Barrier Height
Select a suitable height based on your risk level. Higher protection for industrial or high-risk areas, lower options for light flooding conditions.
Sealing Performance
A good sealing system is essential. High-quality rubber gaskets help prevent water leakage at joints and ground contact points.
Material and Durability
Choose corrosion-resistant and strong materials like aluminum alloy to ensure long service life and repeated use.
Installation Speed
If you need emergency deployment, choose a modular system that is quick and easy to install without special tools.
F50 SERIES Free-Standing Flood Board – Advanced Flood Protection Solution
F80 SERIES: Reliable, High-Performance Flood Defense
FAQ
Does the L-shaped flood barrier work?
Yes, L-Shaped Flood Barriers effectively prevent flooding by blocking and redirecting water away from entrances and vulnerable areas. Their durable, weather-resistant construction and tight seal design ensure reliable performance during sudden or severe floods, making them a practical solution for both residential and commercial properties.
Factors affecting the price of L-shaped flood barriers.
The price of L-Shaped Flood Barriers depends on material quality, size, customization options, and design features. Barriers made from high-strength, corrosion-resistant materials or with enhanced sealing mechanisms typically cost more. Additional factors include ease of installation, durability, and whether the product includes patents or certifications for flood protection standards.
How Do L-Shaped Flood Barriers Work to Protect Properties?
L-Shaped Flood Barriers work by forming a tight, vertical and horizontal seal along doorways and openings, preventing water from entering. The L-shape design redirects floodwater away from protected areas, while durable materials and optional double sealing gaskets ensure stability under high water pressure. This system allows for quick deployment and reliable protection in both residential and commercial settings.
Are L-shaped flood barriers better than sandbags?
Partner With NewFlag for Reliable L-Shaped Flood Barrier Solutions
NewFlag's L-shaped flood barriers are engineered for durability, rapid deployment, and maximum protection against extreme water pressure. Easy to install with no specialized tools required, our barriers deliver reliable flood defense for residential, commercial, and infrastructure projects. Contact us today to find the right solution for your needs.
